Inside Our CNC Machining Process for High-Precision Tungsten Dart Barrels

Why CNC Machining Matters for Premium Tungsten Darts

Unlike brass darts that are typically cast or simply turned, premium tungsten barrels require precision CNC machining because of the material's extreme hardness and density.

90% tungsten alloy provides several advantages:

• Slim barrel profile
• Better weight concentration
• Improved balance
• Professional grip options
• Higher durability
• Premium player experience

However, these advantages also create significant manufacturing challenges.

Tungsten is much harder than brass or stainless steel. Tool wear occurs faster, cutting parameters must be carefully optimized, and machining vibration can easily affect dimensional accuracy if equipment is not properly calibrated.

For this reason, producing high-end tungsten darts requires specialized CNC equipment, experienced technicians, and strict process control rather than conventional metalworking methods.

---

Step 1 – Premium Tungsten Material Selection

Everything begins with the raw material.

Before production starts, every batch of tungsten alloy undergoes material verification.

Our engineering team checks:

• Tungsten percentage
• Material density
• Hardness consistency
• Surface defects
• Internal impurities
• Material certification

Only qualified material enters production.

For premium private-label collections, we primarily manufacture:

• 90% Tungsten
• 95% Tungsten (selected projects)
• Custom alloy compositions upon request

Consistent material quality ensures every barrel responds identically during machining.

Without stable raw material, even the world's best CNC machine cannot deliver consistent products.

---

Step 2 – Cutting Tungsten Rods Into Precision Blanks

The verified tungsten rods are cut into barrel blanks slightly longer than the finished product.

Each blank is measured before entering CNC machining.

Important inspections include:

• Diameter tolerance
• Length tolerance
• Surface flatness
• End squareness

Maintaining uniform blanks helps eliminate machining variations during later production stages.

This seemingly simple step greatly improves machining efficiency while reducing waste.

---

Step 3 – CNC Turning the Barrel Profile

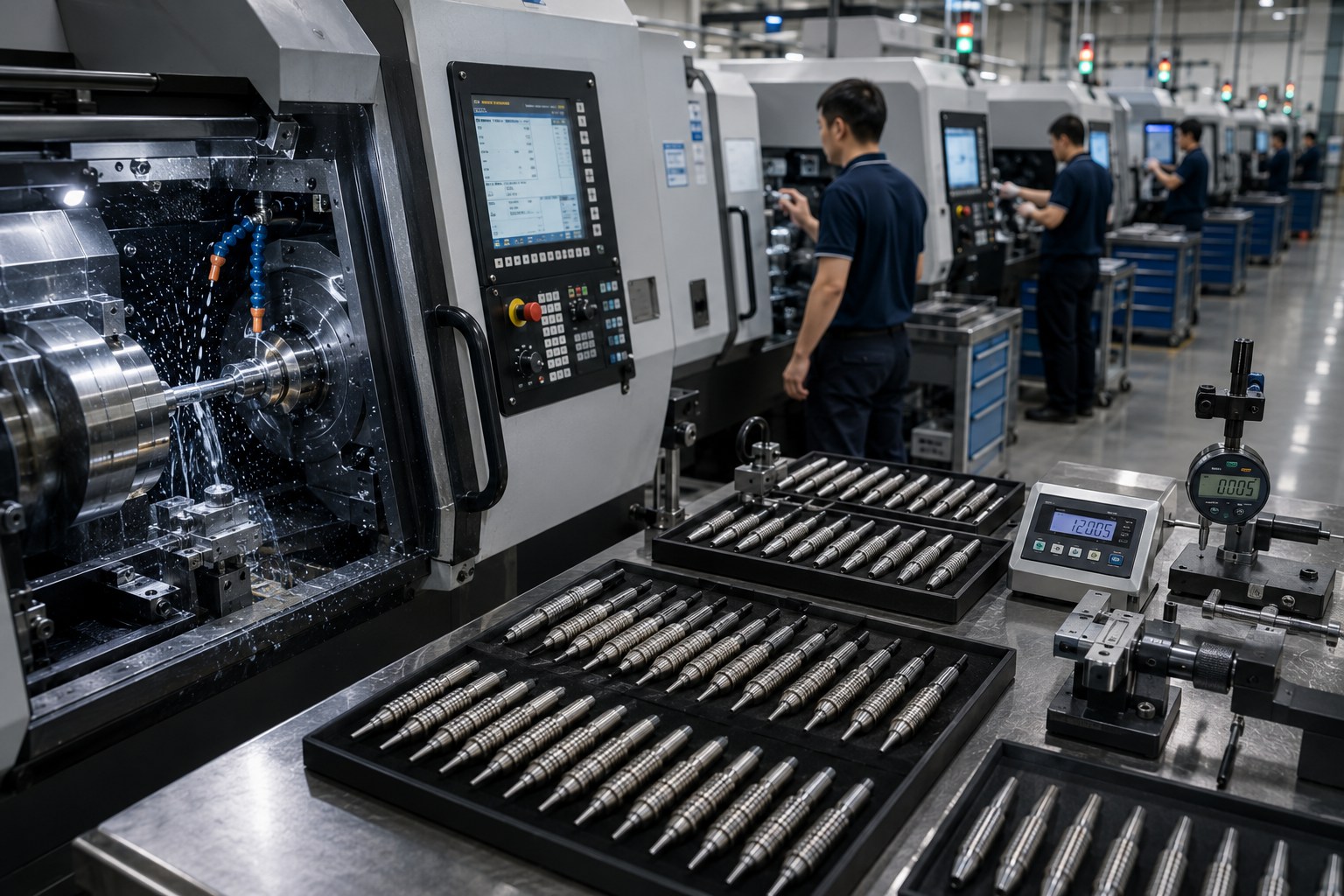

After preparation, each blank enters our CNC turning center.

This stage creates the overall barrel shape.

The machine precisely forms:

• Straight barrels
• Bomb barrels
• Torpedo barrels
• Parallel barrels
• Front-loaded designs
• Center-balanced profiles
• Rear-weighted configurations

Every curve follows CAD engineering drawings supplied by either our customer or our in-house design team.

Our CNC lathes continuously monitor spindle speed, cutting feed, and tool pressure to maintain dimensional consistency throughout production.

Typical machining tolerance remains within approximately:

±0.01–0.02 mm

Such precision ensures every barrel in a production batch matches the approved sample.

---

Step 4 – Machining Complex Grip Patterns

Grip texture is one of the most recognizable features of a premium dart barrel.

Players rely on grip consistency for repeatable throwing performance.

Our CNC machines produce hundreds of grip variations, including:

Ring Grip

The classic circular groove remains the industry's most widely used grip pattern because it offers balanced control for players of different throwing styles.

---

Shark Grip

Aggressive angled edges provide stronger finger traction while maintaining controlled release.

This design is popular among competitive players seeking maximum confidence.

---

Pixel Grip

Micro-machined geometric textures create exceptional tactile feedback while reducing excessive finger pressure.

The pattern requires multi-axis CNC programming to maintain identical geometry across the barrel.

---

Diamond Grip

Cross-cut diamond machining provides balanced friction from multiple finger positions.

This style is often selected for premium tournament collections.

---

Hybrid Grip

Many modern dart brands combine multiple grip styles into one barrel.

For example:

• Ring Grip
• Shark Grip
• Micro Groove
• Smooth Transition Zones

These combinations require several CNC operations within a single machining cycle.

Each transition must remain perfectly aligned to avoid visible inconsistencies.

---

Step 5 – Precision Thread Machining

Every tungsten barrel must securely connect with shafts.

Thread quality directly affects:

• Assembly smoothness
• Shaft compatibility
• Long-term durability
• Vibration resistance

Our CNC equipment machines standard 2BA threads used by nearly all professional dart accessories.

Every thread undergoes gauge inspection before moving to surface treatment.

Poor thread accuracy may cause:

• Loose shafts
• Cross-threading
• Shaft breakage
• Customer complaints

This is why thread inspection forms a dedicated quality checkpoint.

---

Step 6 – Deburring and Edge Refinement

Freshly machined barrels often contain microscopic burrs.

These tiny imperfections may appear insignificant but can negatively affect grip comfort and coating adhesion.

Each barrel therefore passes through multiple finishing operations.

Technicians carefully remove:

• Sharp edges
• Micro burrs
• Surface irregularities
• Tool marks

The result is a smooth, premium tactile experience without compromising grip sharpness.

---

Step 7 – Surface Finishing and Premium Coatings

Once machining is complete, barrels receive their chosen surface finish.

Common options include:

Natural Tungsten Finish

Maintains the authentic metallic appearance favored by traditional players.

---

Black Titanium Coating

Produces a sleek premium appearance while improving wear resistance.

---

Gold Titanium

Frequently selected for luxury gift collections and signature editions.

---

Rainbow PVD Finish

Creates a vibrant multi-color appearance popular among younger consumers.

---

Sandblasted Texture

Provides a matte finish that enhances grip feel while reducing fingerprints.

---

Dual-Finish Designs

Many modern premium darts combine polished and matte surfaces to create greater visual depth and highlight grip zones.

---

Step 8 – Laser Logo Engraving

Private-label branding is added after finishing.

Using high-precision fiber laser equipment, we engrave:

• Brand logos
• Model numbers
• Weight markings
• Series identification
• Limited edition graphics

Laser engraving provides excellent durability without affecting barrel balance or grip performance.

The engraving depth is optimized to remain visible while preserving structural integrity.

---

Step 9 – Individual Weight Calibration

Weight consistency is one of the most important indicators of manufacturing quality.

Every barrel is individually measured using high-precision electronic scales.

Typical production tolerance:

±0.05 g

For premium tournament collections, even tighter tolerances can be achieved based on customer requirements.

If any barrel falls outside specification, it is removed from production immediately.

This rigorous calibration ensures that every dart in a set delivers a consistent throwing experience.

---

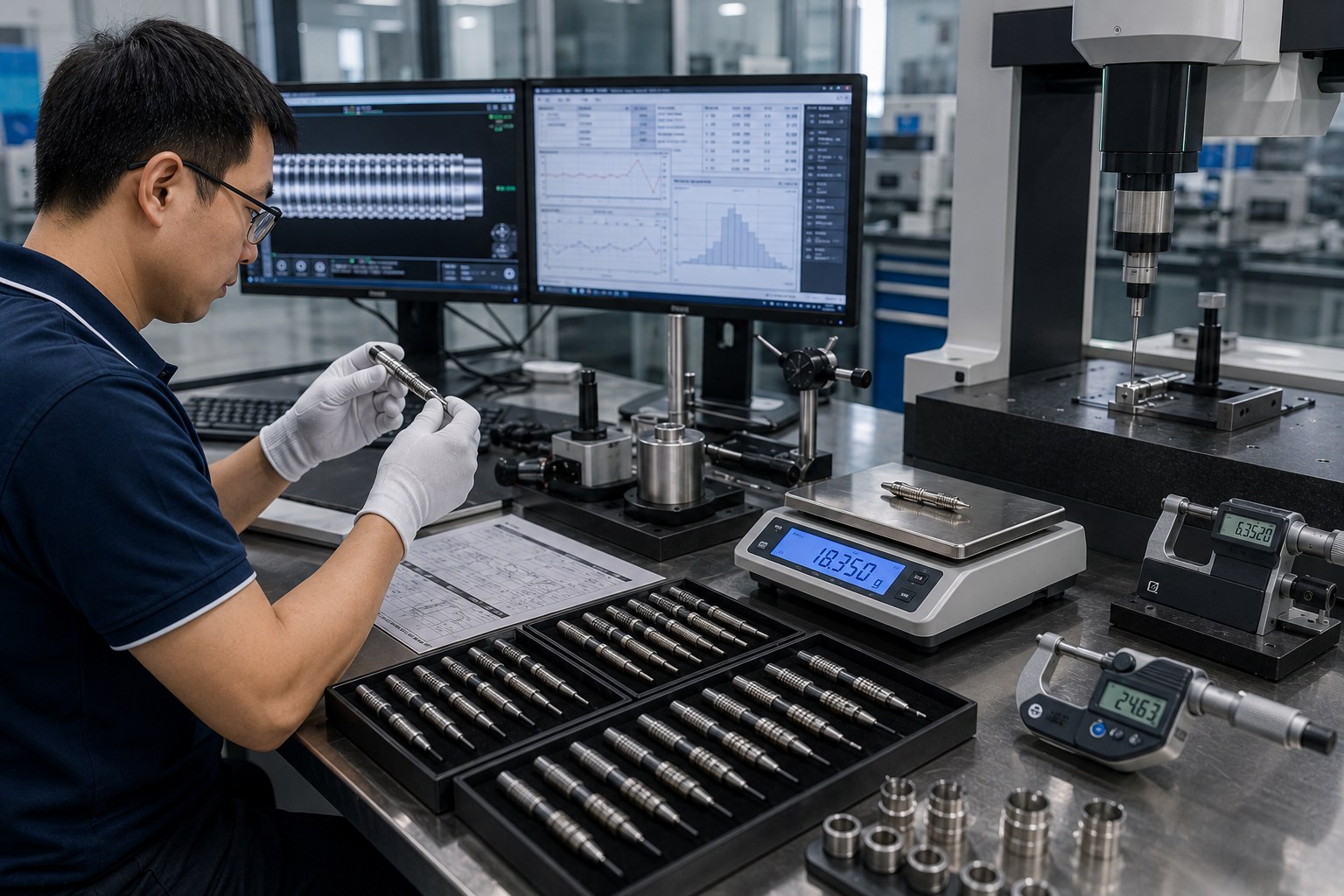

Step 10 – Dimensional Quality Inspection

After machining and finishing, every barrel undergoes a comprehensive dimensional inspection.

Our QC team verifies:

• Overall length
• Maximum diameter
• Minimum diameter
• Grip position accuracy
• Thread depth
• Nose profile
• Balance point
• Surface integrity
• Laser engraving quality
• Coating consistency

Digital measuring equipment records key dimensions throughout production, allowing us to maintain traceability and identify trends before they become issues.

---

Step 11 – Assembly Testing

Before packaging, barrels are assembled with compatible components to verify overall fit and functionality.

Technicians test:

• Shaft threading
• Flight alignment
• Tip installation
• Component compatibility
• Overall balance

This step ensures customers receive products ready for immediate use or retail packaging.

---

Step 12 – Final Packaging Inspection

The finished barrels move to the packaging department, where they undergo one final inspection before shipment.

Our team confirms:

• Correct model
• Correct weight
• Correct finish
• Logo accuracy
• Quantity verification
• Packaging integrity
• Barcode validation
• Carton labeling

For OEM and private-label projects, packaging is checked against approved artwork to ensure complete consistency with the customer's branding requirements.

---

Digital Manufacturing and Production Traceability

Modern dart manufacturing extends beyond precision machining.

Our CNC production is supported by a digital quality management system that records key manufacturing data throughout the process.

Each production batch can be traced using manufacturing records that include:

• Material batch information
• CNC machine assignment
• Tool replacement schedules
• Operator records
• QC inspection data
• Weight measurement logs
• Surface treatment records
• Packaging verification

This traceability allows us to identify and resolve potential issues quickly while providing greater confidence for customers placing repeat orders.

---

How Precision CNC Machining Benefits Your Brand

For brand owners, machining quality directly influences business performance—not just product specifications.

Consistent CNC manufacturing helps deliver:

Better Product Reviews

Players notice consistent grip, balance, and finish, leading to stronger customer satisfaction and positive feedback.

Lower Return Rates

Accurate machining reduces issues related to weight variation, poor threading, or inconsistent grip patterns.

Stronger Brand Reputation

Uniform quality across every production batch reinforces trust among distributors, retailers, and end users.

Easier Product Expansion

Once machining programs are validated, new barrel designs can be developed more efficiently while maintaining consistent manufacturing standards.

Reliable Long-Term Supply

Stable CNC processes make it easier to reorder existing models with minimal variation, supporting ongoing product lines and repeat business.

---

Why International Dart Brands Choose Our CNC Manufacturing

Over the years, we have partnered with brands across Europe, North America, and other global markets to manufacture premium tungsten dart collections.

Customers value our capabilities because we provide:

• Advanced multi-axis CNC machining equipment
• Experienced engineering support for custom barrel development
• High-precision machining with tight dimensional control
• Consistent weight verification for every production batch
• Wide selection of grip patterns and surface finishes
• Flexible OEM and private-label manufacturing
• Scalable production for both new product launches and high-volume repeat orders
• Comprehensive quality inspection before shipment

Our goal is not simply to produce dart barrels, but to help brands deliver products that players trust and recommend.

---

Conclusion

Behind every premium tungsten dart lies a manufacturing process where precision matters at every stage.

From selecting high-quality tungsten alloy and machining intricate grip patterns to applying durable coatings, calibrating weight, and performing comprehensive inspections, each operation contributes to the final performance of the dart.

For brands looking to compete in today's premium market, consistency is just as important as innovation. A well-designed barrel can only succeed when it is manufactured with repeatable precision, strict quality control, and reliable production processes.

By combining advanced CNC technology, experienced engineers, and rigorous inspection standards, we help customers transform product concepts into premium tungsten dart collections that meet the expectations of professional players, retailers, and distributors worldwide.

---

Frequently Asked Questions

1. What tungsten percentage is best for premium darts?

Most premium darts use 90% tungsten, offering an excellent balance between slim barrel diameter, durability, machinability, and cost. Some professional or limited-edition models use 95% tungsten for an even slimmer profile.

---

2. How accurate is CNC machining for tungsten dart barrels?

Our CNC machining process maintains dimensional tolerances of approximately ±0.01–0.02 mm, while finished barrel weights are typically controlled within ±0.05 g, ensuring excellent consistency across production batches.

---

3. Can you manufacture completely custom barrel designs?

Yes. We support full OEM and private-label development, including custom barrel profiles, grip patterns, surface finishes, laser engraving, weight options, and branded packaging based on customer specifications or original CAD drawings.

---

4. What grip patterns can you machine?

We produce a wide range of grip styles, including Ring Grip, Shark Grip, Pixel Grip, Diamond Grip, Razor Grip, Micro Grip, Knurled Grip, Scalloped Grip, and complex hybrid combinations tailored to specific player preferences or brand concepts.

---

5. How do you ensure consistent quality in large production runs?

Quality is maintained through strict material inspection, precision CNC programming, scheduled tool replacement, in-process dimensional checks, individual weight calibration, digital traceability, and a comprehensive final inspection before packaging and shipment. This systematic approach ensures that every batch closely matches the approved sample and meets international quality standards.
